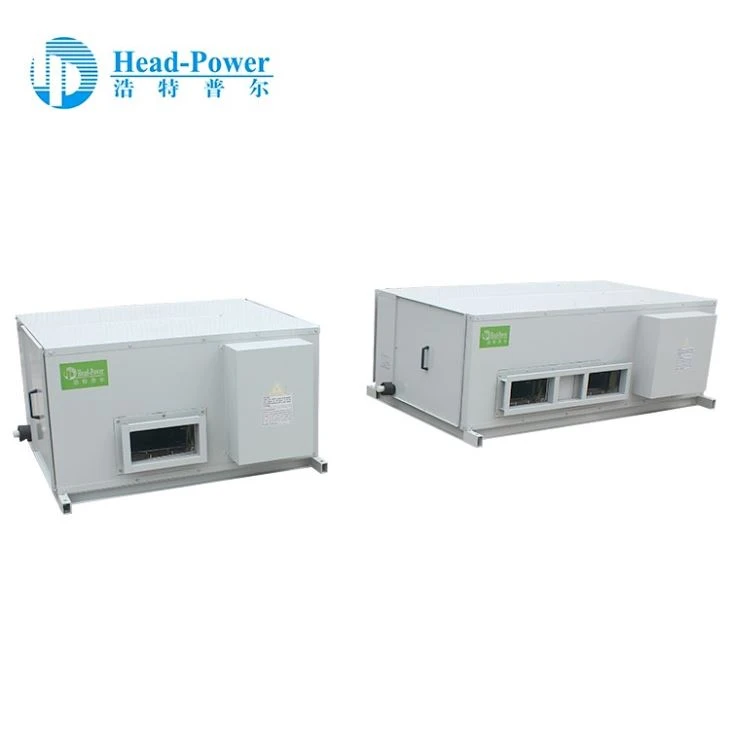

5tunová vodou chlazená klimatizace 220v 50Hz
| SeaWater Cooled Packaged Unit | ||||
| Model No. | MWL060 | |||
| Unit performance | Cooling capacity | BTU | 60000 | |
| Air flow | m3/h | 2800 | ||
| External static pressure | Pa | 200 | ||
| Noise level | dB(A) | 52 | ||
| Zdroj napájení | 400V/3PH/50Hz | |||
| Refrigerating system | Compressor | Typ | Hermetic scroll type | |
| značka | Panasonic | |||
| Napájení | kW | 4 | ||
| Condenser | Typ | Niklově bílá měděná trubka plus koncový kryt z nerezové oceli | ||
| Water flow | m3/h | 3.8 | ||
| Water pressure drop | mH20 | 25 | ||
| Connecting pipe | mm | 32 | ||
| Evaporator | Typ | Copper tube with aluminium fin | ||
| Refrigerant | Typ | R404A | ||
| Volume control | expanzní ventil | |||
| Air supply system | Blower | Typ | Low-noise centrifugal | |
| Driving method | přímo řídit | |||
| Motor | Napájení | kW | 0.75 | |
| Unit Dimensions | LWH | mm | 10005501600 |
5 Ton 220v 50hz Water Cooled Air Conditioner Debugging of Air Conditioning System
When the installation of air conditioning system, water system, air duct system, refrigerating system and electrical system is finished, then you can debug the air conditioning system.
5 Ton 220v 50hz Water Cooled Air Conditioner Preparation
Prepare the necessary tools and instruments, such as the refrigerant pressure gauge (composite gauge), anemometer, noise meter, digital thermometer, clamp Meter, multimeter, etc.. When water system pressure test has finished, the pipe should be cleaned repeatedly several times. Check water system, air conditioner, air duct system and electrical system thoroughly to see whether they meet the design requirements.
